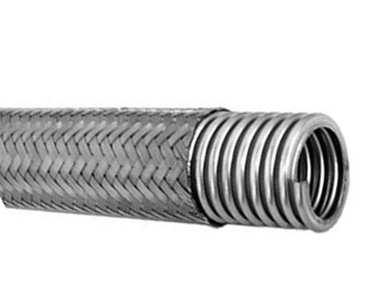

SFH920 01C Convoluted Metal Hose This Type spiral corrugated flexible body has a continuous spiral waveform. Used for static and small amount of exercise occasions.

DN I.D. (mm) min.bending radius (mm) W.P. (bar) Static state Dynamic state 1 braid 2 braids 3 braids 6 6 50 110 200 250 / 8 8 65 145 200 250 / 10 10.9 80 180 200 250 / 12 12 95 215 200 250 / 15 15.5 120 270 200 250 / 20 20 160 360 160 200 250 25 25 175 400 100 150 200 32 31 225 510 63 100 150 40 40 280 640 40 63 100 50 50 350 800 25 40 63 65 62 390 845 25 40 63

Convoluted Metal Hose

Annular Metal Hose

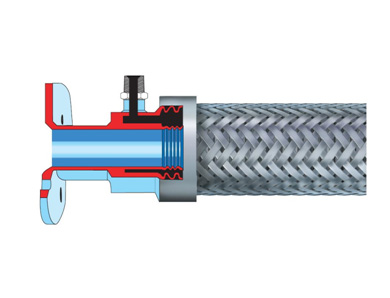

Double-walled Metal Hose

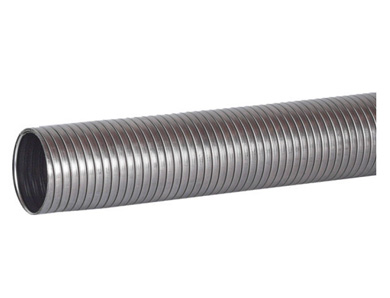

Wrapped Metal Hose
